| Quantity: | |
|---|---|
GEYU

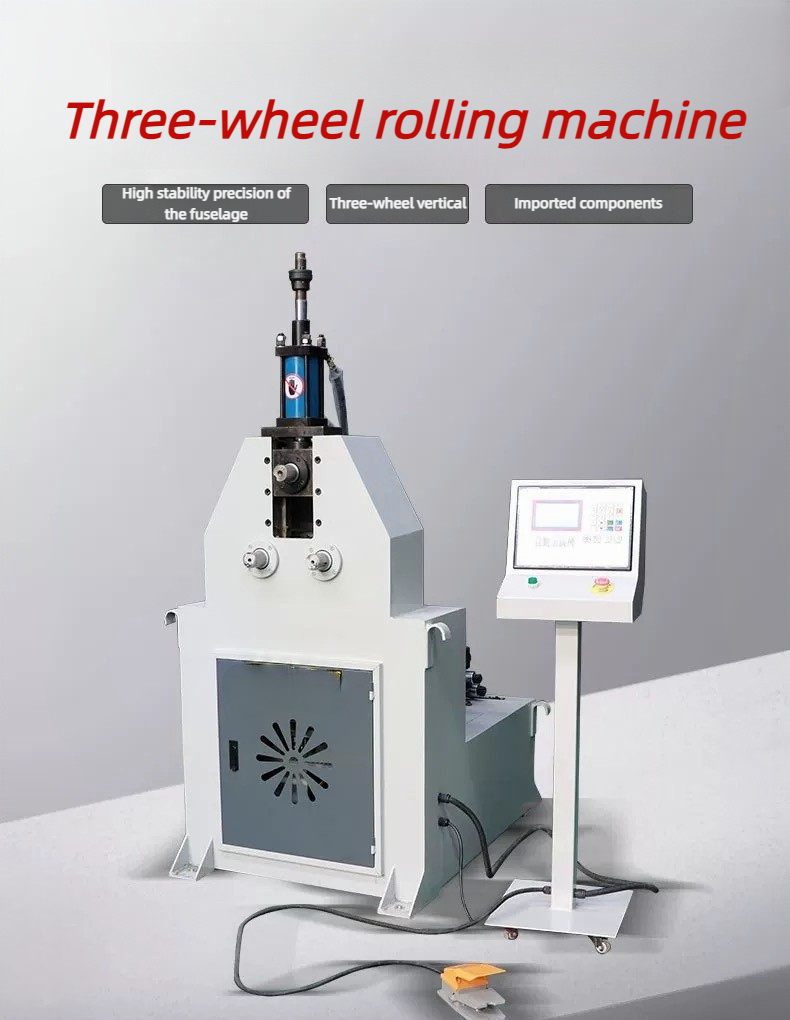

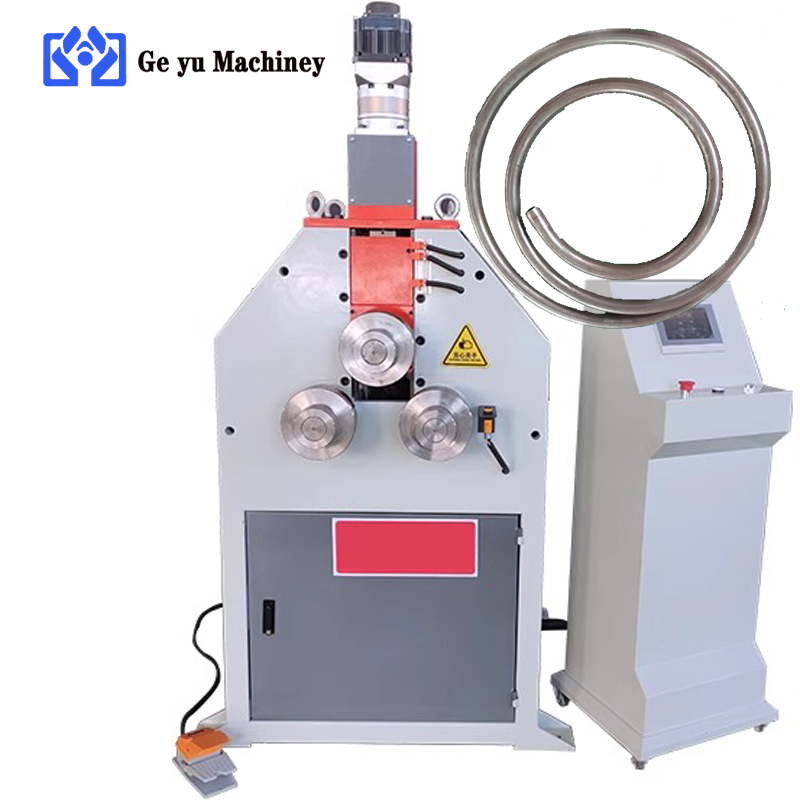

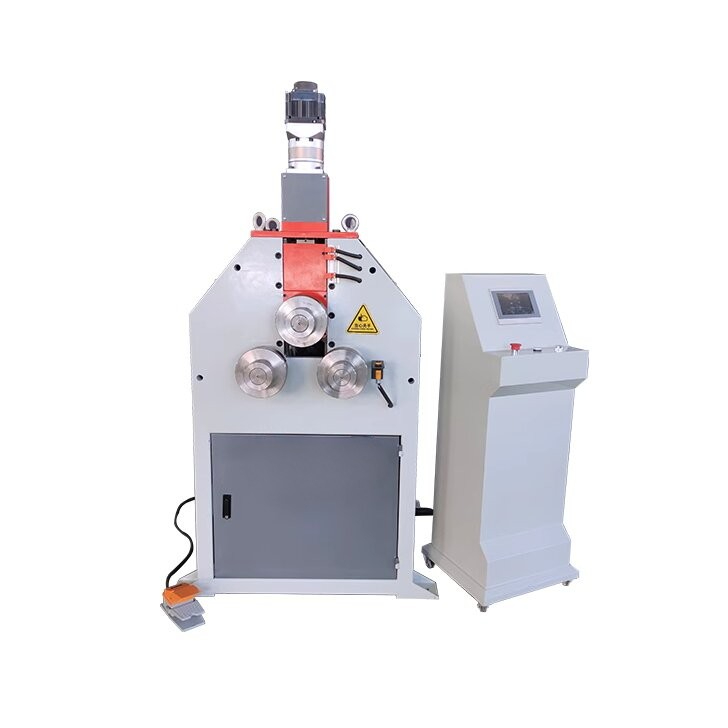

Product Overview
Product Paramenters
| Model | GY-40 three-wheel rolling machine | GY-60 three-wheel rolling machine | GY-80 three-wheel rolling machine | |||
| Maximum bennding capacity | 40x2.0mm | 60x2.5mm | 75x3.0mm | |||
| Maximum bennding radius | Pipe diameter x10-15 times | Pipe diameter x10-15 times | Pipe diameter x10-15 times | |||
| Rolling speed | 200-300mm/s | 100-200mm/s | 50-150mm/s | |||
| Oil pump motor power | 4kw | 5.5kw | 7.5kw | |||
| The number of arc bends can be set for each pipe fitting | one | N | one | N | one | N |
| Rotational speed of wheel mold | 60r/s | Inverter control | 60r/s | Inverter control | 60r/s | Inverter control |
| Transmission mode | Hydraulic motor | Motor driven Reducer | Hydraulic motor | Motor driven Reducer | Hydraulic motor | Motor driven Reducer |
| Variable diameter method | Oil cylinder diameter reduction | Servo motor diameter reduction | Oil cylinder diameter reduction | Servo motor diameter reduction | Oil cylinder diameter reduction | Servo motor diameter reduction |
| Equipment size | 1200x700x1600mm | 1200x700x1600mm | 1200x700x1600mm | |||
| Equipment weight | 400kg | 500kg | 500kg | 600kg | ||
Product Details
Why choose us
FAQ
Q1: Are you trading company or manufacturer?
YES, we are a manufacturerwe are focusing on metal pipe/tube processing machines production
Q2: The nearest port
Qingdao or Shanghai port.
Q3:How to choose the machine model?
pls tell us the follow informations
pipe material
pipe size, wall thick
Q4: about service
before sales service
We will help you confirm the suitable machine model according to your pipe information.
machine data and vedio for you to check.
after sales service
manual book and operation vedio , installation, commission for you to operate the machine
welcome to our factory and learn more knowledge about the machine. if you affect the air tickets.
any problems on the machine. we will offer reply by email. vedio. mobile. online.
