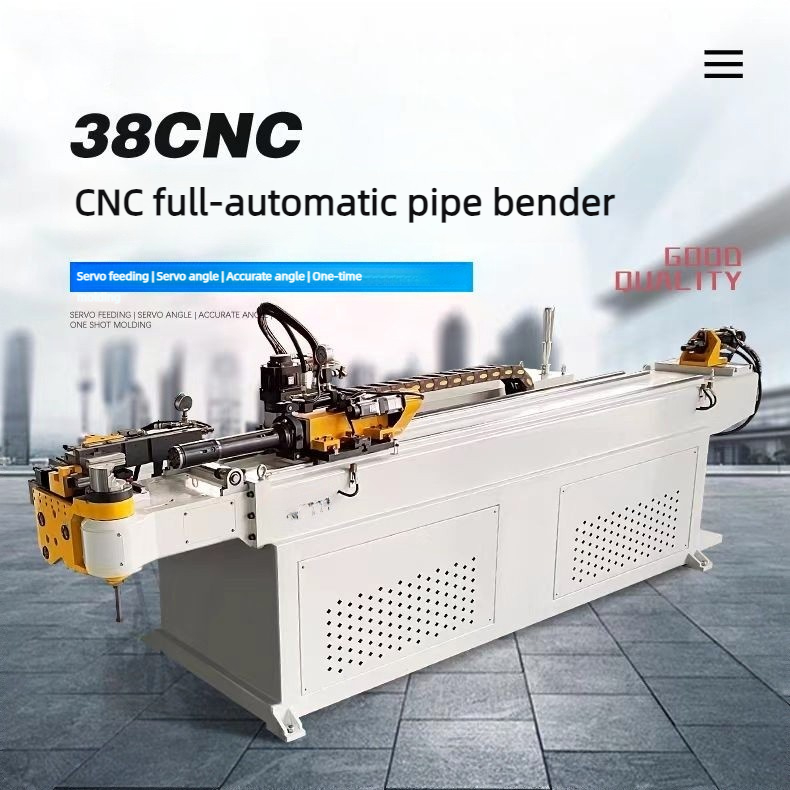

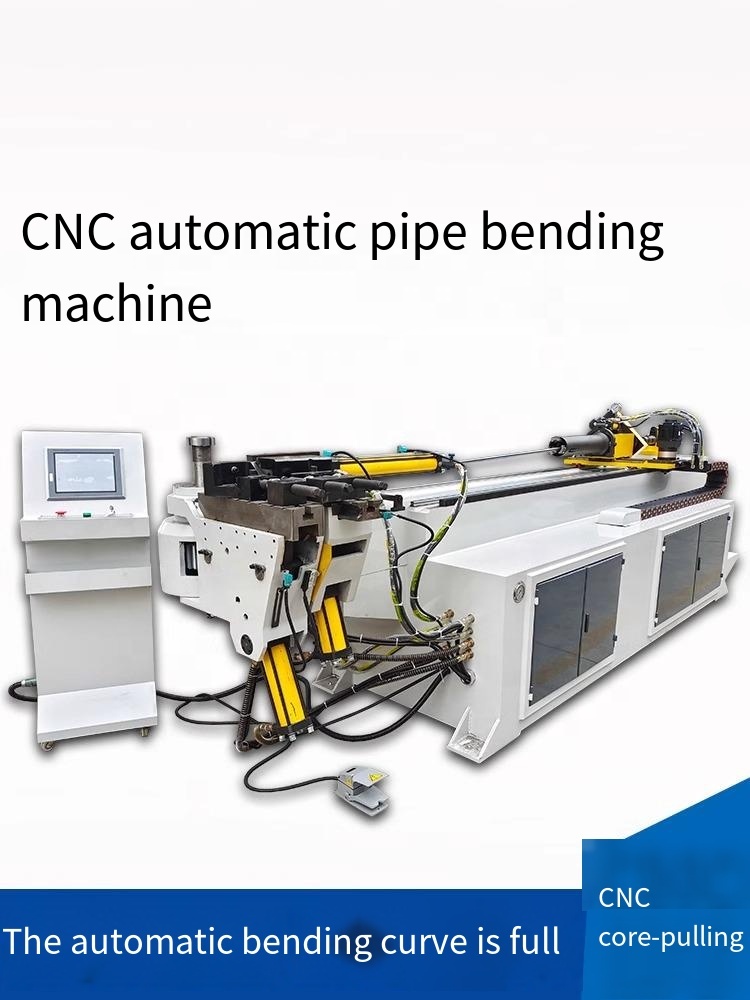

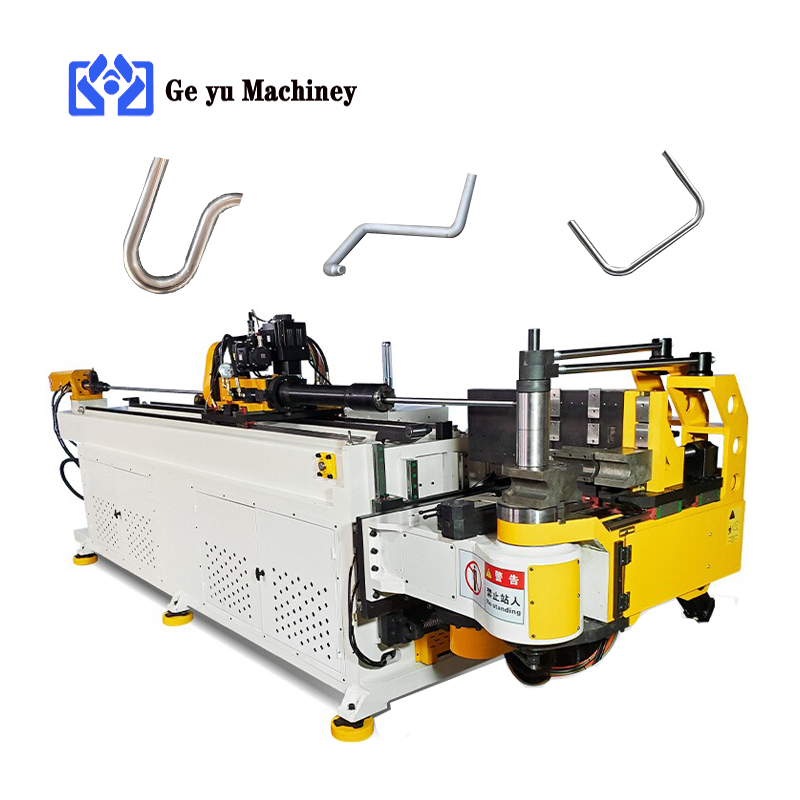

38CNC Pipe And Tube Bending Machine
GEYU

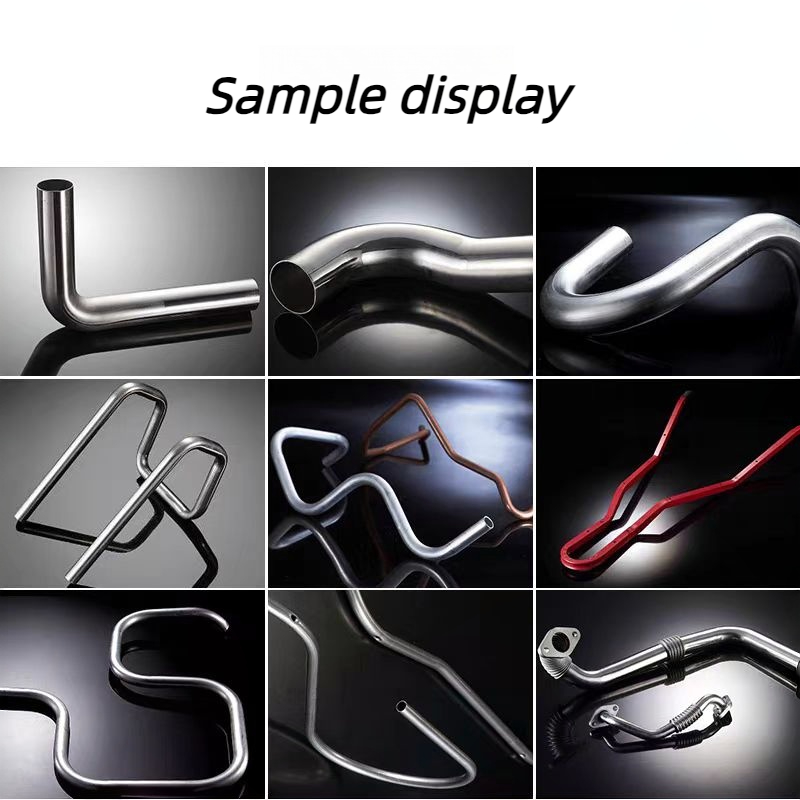

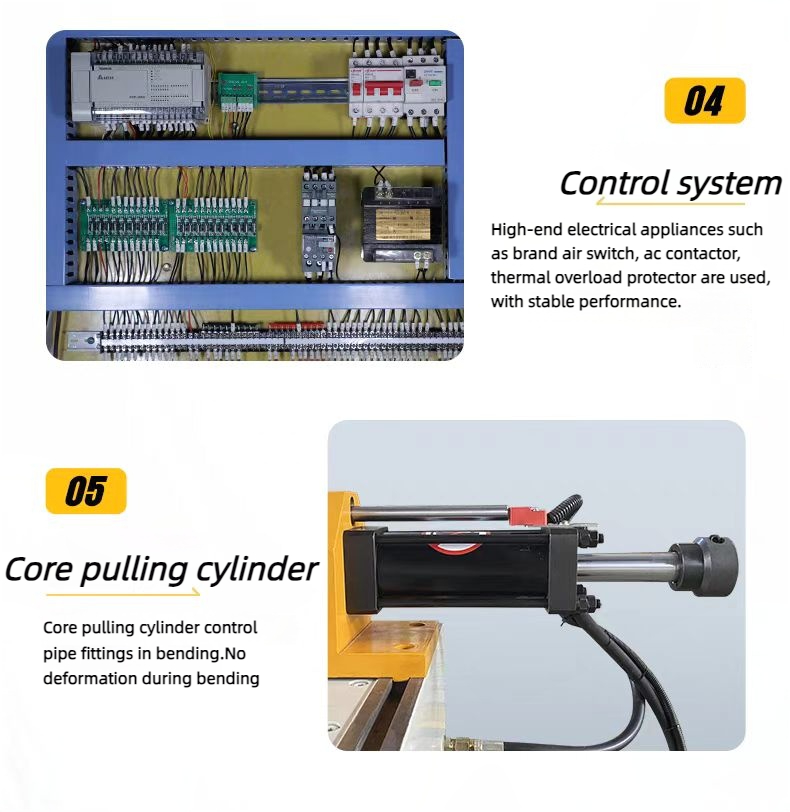

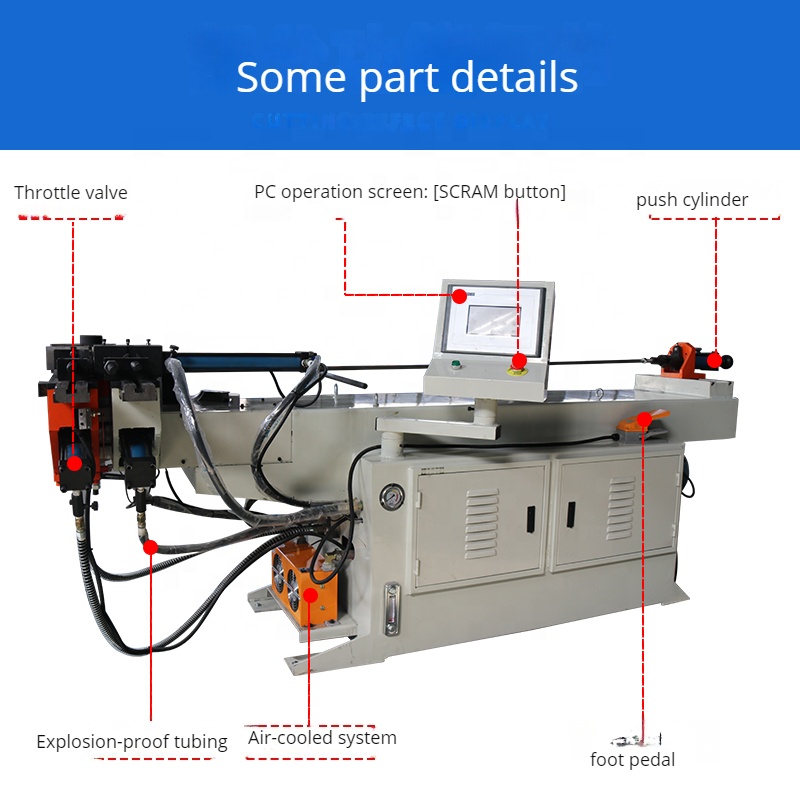

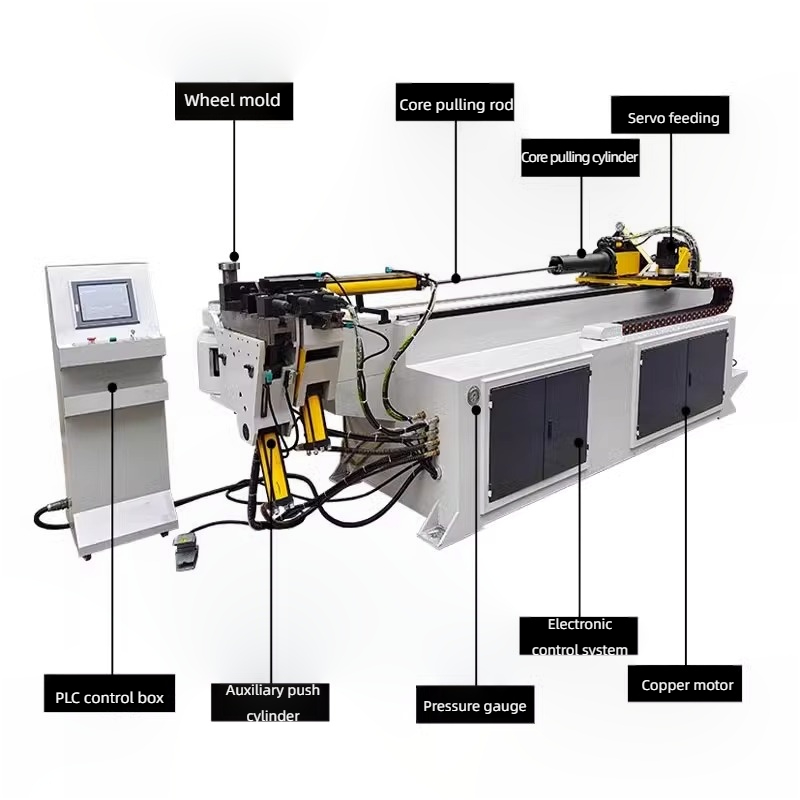

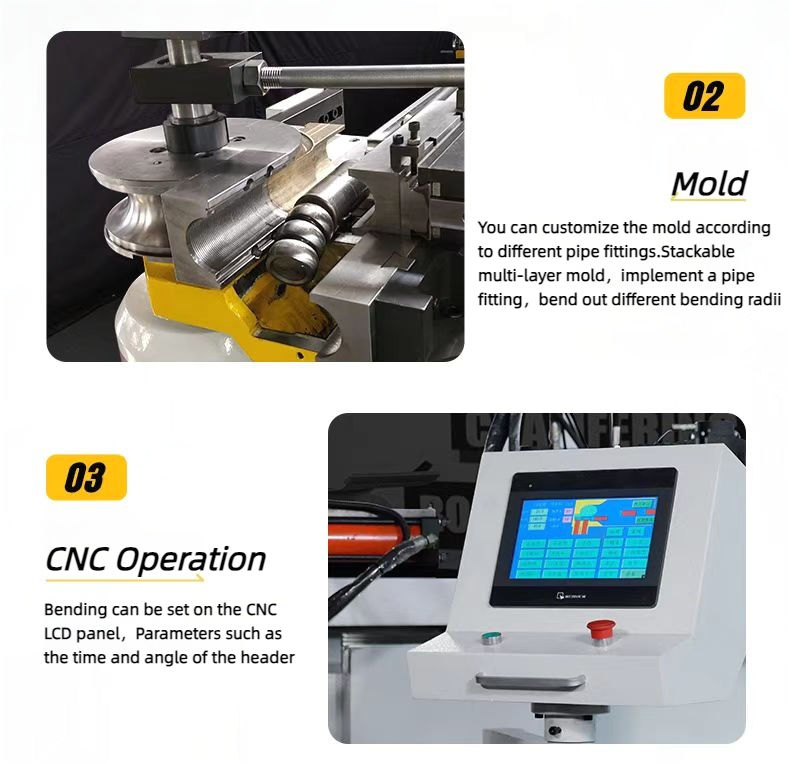

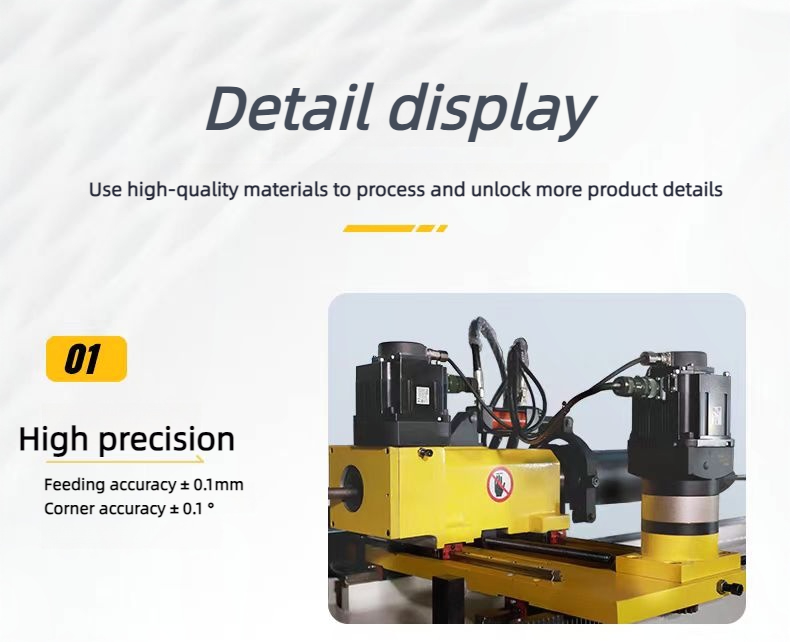

Product Overview

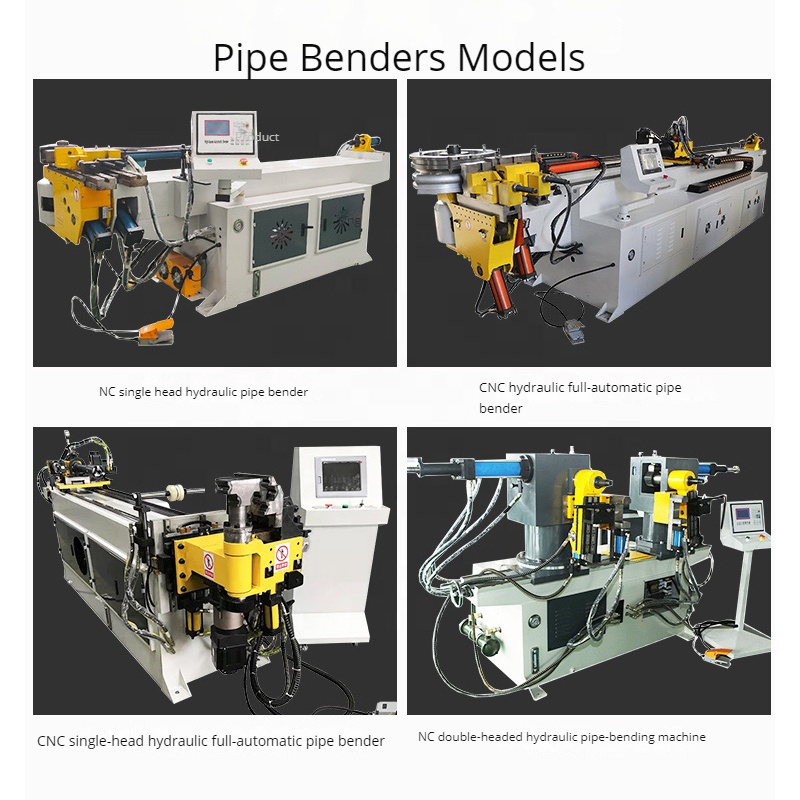

Product Paramenters
| Model | SB-38CNC | SB-50CNC | SB-63CNC | SB-75CNC | SB-89CNC |
| Max.pipe O.D | Φ38x2.0mm(1.5°） | Φ50x2.5mm(2°） | Φ63x3mm(2.5°） | Φ75x3mm(3°） | Φ89x4mm(3.5°） |
| Max.stainless steel tube | Φ32x1.5mm | Φ45x2mm | Φ63x1.5mm | Φ75x1.5mm | Φ89x2mm |
| Max.bending radius | R=180mm | R=200mm | R=250mm | R=300mm | R=350mm |
| Max.bending angle | 190° | 190° | 190° | 190° | 190° |
| Max. mandrel working distance | 2000mm | 2200mm | 2800mm | 3000mm | 3500mm |
| Pipe bending speed | Max 80°/s | Max 60°/s | Max 40°/s | Max 25°/s | Max 20°/s |
| Pipe bending precision | ±1° | ±1° | ±1° | ±1° | ±1° |
| Feeding speed | 1000mm | 1000mm | 850mm | 800mm | 750mm |
| Feeding precision | ±1°mm | ±1°mm | ±1°mm | ±1°mm | ±1°mm |
| Rotating speed | 360° | 360° | 250° | 220° | 220° |
| Rotation precision | ±0.1° | ±0.1° | ±0.1° | ±0.1° | ±0.1° |
| Pipe bending mode(optional) | Hydraulic drive/Servo-drive | Hydraulic drive/Servo-drive | Hydraulic drive/Servo-drive | Hydraulic drive/Servo-drive | Hydraulic drive/Servo-drive |
| Radius difference in multi-layer die | 50mm | 80mm | 80mm | 90mm | 90mm |
| Unit-bend number | 16 | 16 | 16 | 16 | 16 |
| Max. chip memory | 500 | 500 | 500 | 500 | 500 |
| Hydraulic motor power | 4Kw | 5.5Kw | 7.5Kw | 7.5Kw | 11Kw |
| Hydraulic pressure | 12Mpa | 12Mpa | 12Mpa | 12Mpa | 12Mpa |
| Oil tank capacity | 200L | 250L | 250L | 300L | 450L |
| Machine dimension(LxWxH) | 3800x900x1300mm | 4000x1100x1400mm | 4800x1100x1300mm | 5200x1100x1400mm | 6000x1200x1400mm |
| Machine weight | 1500KG | 2000KG | 3000KG | 4500KG | 4800kg |
